Lightspeed Design, Inc.- DepthQ® Stereoscopic has just completed the system integration and installation of a new stereoscopic HD 3D visualization lab for the Seattle office of Parsons Brinckerhoff. With 150 locations worldwide, Parsons Brinckerhoff is one of the world's leading planning, engineering, and construction management organizations.
The DepthQ® stereoscopic HD 3D system consists of:
- DepthQ® Player™, running crosstalk reduction code (ghost busting)
- DepthQ® Polarization Modulator - Small Circular 80x86 mm
- Passive circular polarized 3D glasses
- Automated Modulator Mount - to easily switch from 3D to 2D visualization
- Stewart Filmscreen 150 rear projection polarization preserving screen
- Da-Lite bounce mirror
- ProjectionDesign F10 AS3D single lens HD 3D projector.
Visualization Lab with Stewart Filmscreen 150 rear projection polarization preserving screen.
Equipment room behind rear projection screen showing relative positions of the screen (along left edge of photo), projector and bounce mirror.
Projector mount relative to rear projection screen. Note that the projector faces away from the screen and shoots into a bounce mirror creating a longer throw allowing for a larger image.
Da-Lite bounce mirror.

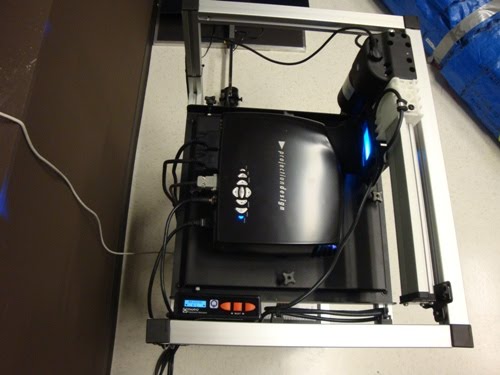

ProjectionDesign F10 AS3D single lens HD 3D projector.
DepthQ® Polarization Modulator with automated mount allowing the modulator to move from in front of the lens with the push of a button for easy switching between 3D and 2D viewing.

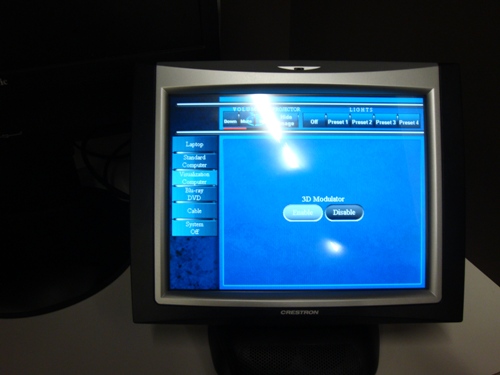

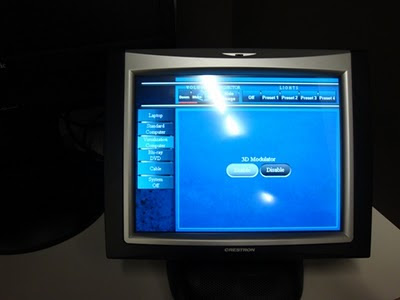

DepthQ® Polarization Modulator automated mount control unit.
DepthQ® Polarization Modulator in 3D position.
DepthQ® Polarization Modulator in 2D position.
Server running DepthQ® Player™ with crosstalk reduction code (ghost busting).
